204
AIREADORES
AIREADORES PARA TRATAMIENTO DE AGUAS HOMOGENEIZADAS
Y
CON OXIDACIÓN BIOLÓGICA
Y
our Life, our Quality. Worldwide
Achique, Aguas Residuales-Estaciones de bombeo.
www.ebara.es

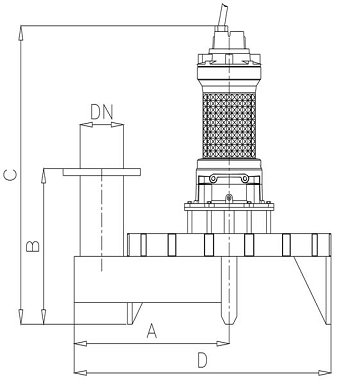

DIMENSIONES SERIE SC-L
Modelo
A
B
C
D
DN
Peso
(mm)
(mm)
(mm)
(mm)
(mm)
(kg)
AJ10G408T15KA
195
238
615
390
1"1/4
62
AJ10G409T30KA
195
238
615
390
1"1/4
62
AJ30G410R40MA
480
336
895
730
DN 80
155
AJ30G411R55MA
480
336
895
730
DN 80
155
AJ75G411R75MA
480
330
942
741
DN 80
180
AJ75G413R95MA
480
330
942
741
DN 80
180
AJ100G413R110PA
480
330
945
741
DN 100
250
AJ100G413R150PA
480
330
945
741
DN 100
250
AJ180G418R180PA
625
330
980
1050
DN 100
392
AJ108G418R220PA
625
330
980
1050
DN 100
392
AJ300G418R300RA
691
360
1100
1170
DN 125
443
AJ300G418R370RA
691
360
1100
1170
DN 125
443
AJ400G418R370SA
708
360
1350
1190
DN 150
470
AJ400G420R440SA
708
360
1350
1190
DN 150
470
AJ500G420R440SA
710
365
1350
1208
DN 150
693
AJ500G420R550SA
710
365
1350
1208
DN 150
693
AJ800G425R800TA*
-
-
-
-
-
-
Modelo
A
B
C
D
DN
Peso
(mm)
(mm)
(mm)
(mm)
(mm)
(kg)
AJ10/LG408T15KA
195
238
615
990
1"1/4 -DN 50
85
AJ10/LG409T30KA
195
238
615
990
1"1/4 -DN 50
85
AJ30/LG410R40MA
480
336
895
1530
DN 80
175
AJ30/LG411R55MA
480
336
895
1530
DN 80
175
AJ75/LG411R75MA
480
330
942
1685
DN 80
203
AJ75/LG413R95MA
480
330
942
1685
DN 80
203
AJ100/LG413R110PA
480
330
945
1685
DN 100
272
AJ100/LG413R150PA
480
330
945
1685
DN 100
272
AJ180/LG418R180PA
625
330
980
2170
DN 100
422
AJ180/LG418R220PA
625
330
980
2170
DN 100
422
AJ300/LG418R300RA
691
360
1100
2640
DN 125
493
AJ300/LG418R370RA
691
360
1100
2640
DN 125
493
AJ400/LG418R370SA
708
360
1350
2640
DN 150
510
AJ400/LG420R440SA
708
360
1350
2640
DN 150
510
AJ500/LG420R440SA
710
365
1350
2675
DN 150
823
AJ500/LG420R550SA
710
365
1350
2675
DN 150
823
AJ800/LG425R800TA*
-
-
-
-
-
-
DIMENSIONES SERIE SC
(*) Modelo AJ800G425R800TA, consultar.
(*) Modelo AJ800/LG425R800TA, consultar.
